Swiss Embassy Singapore

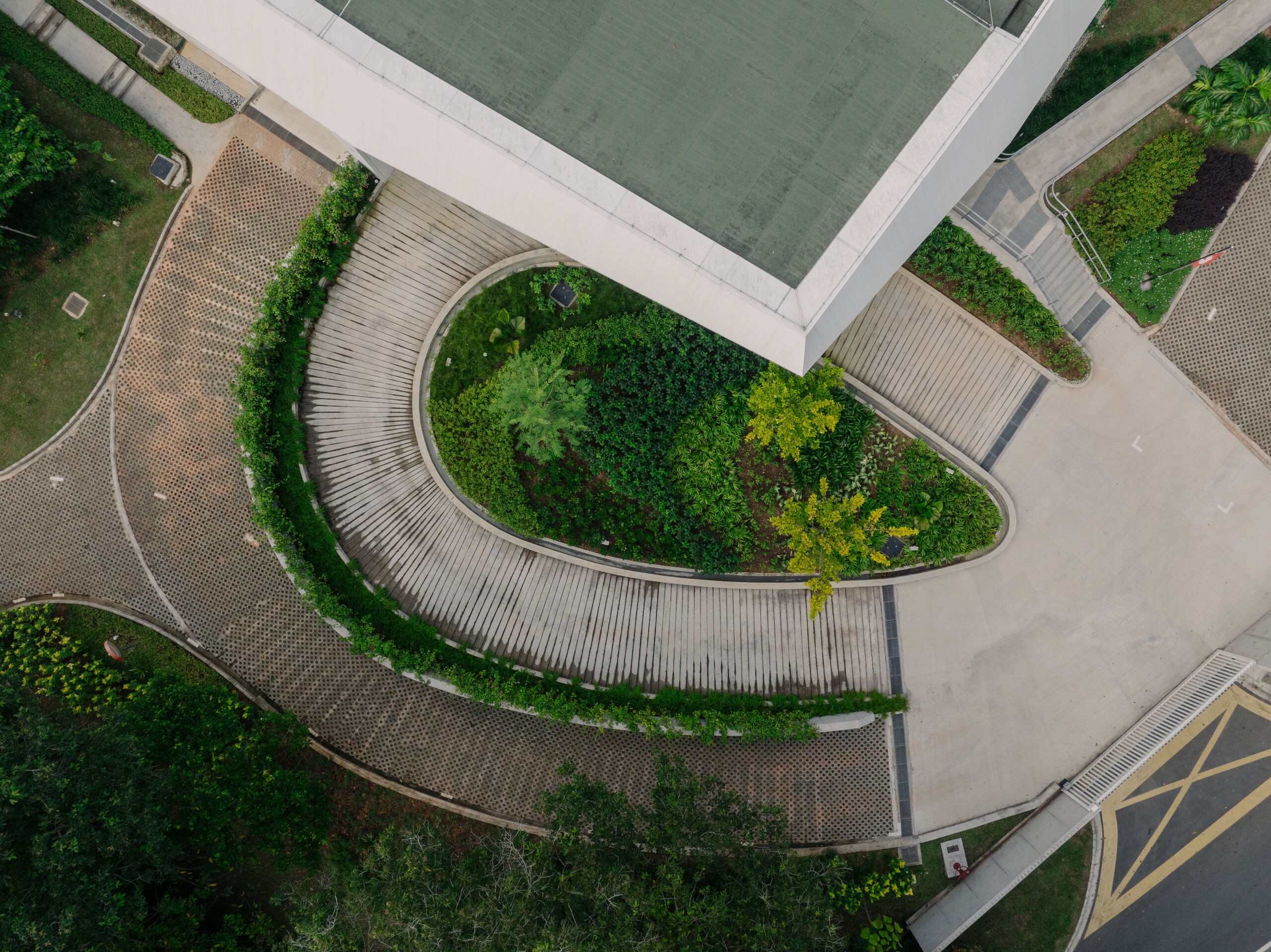

bird's eye view
Entrance area

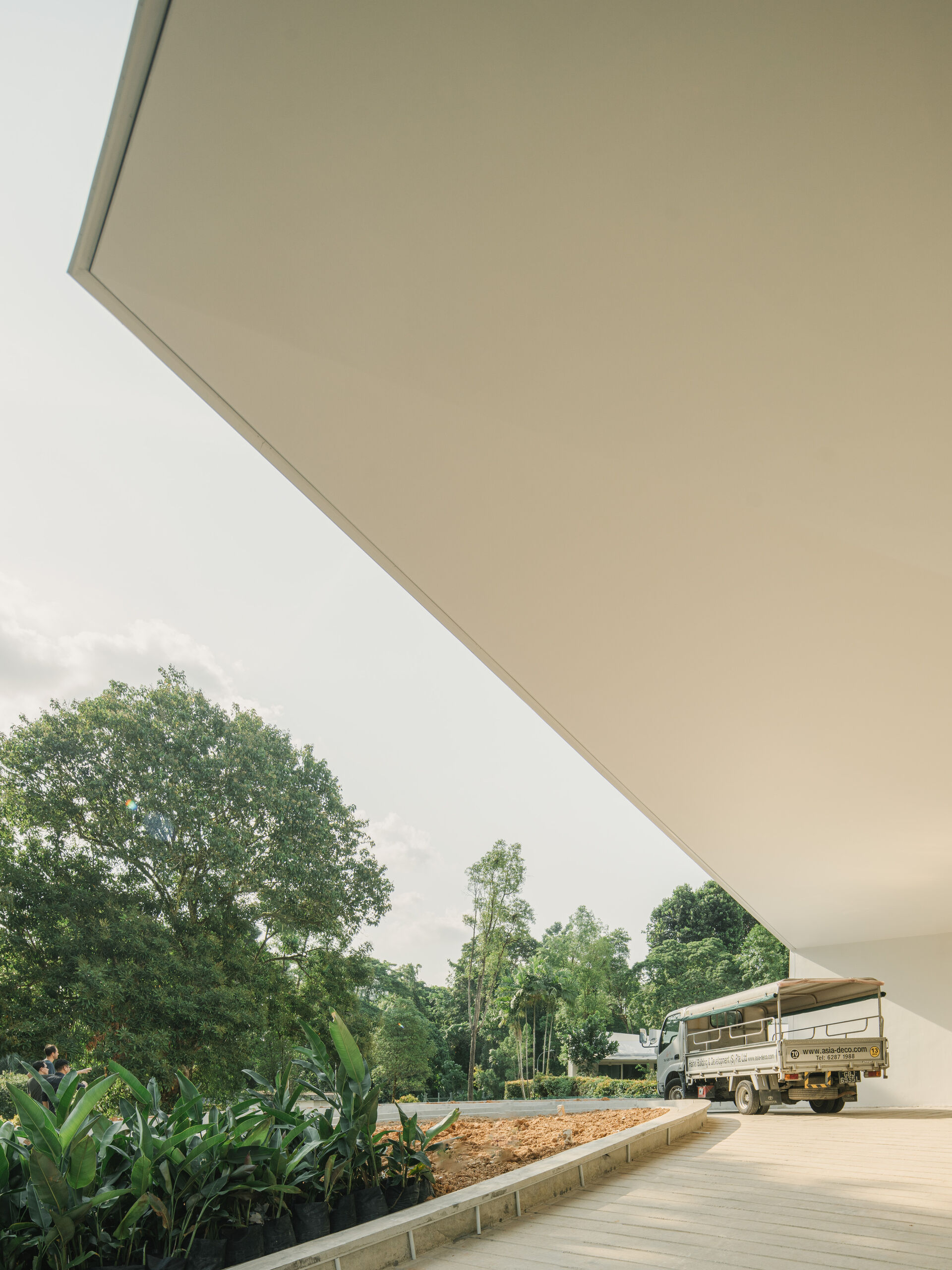

Lower view of the striking canopy

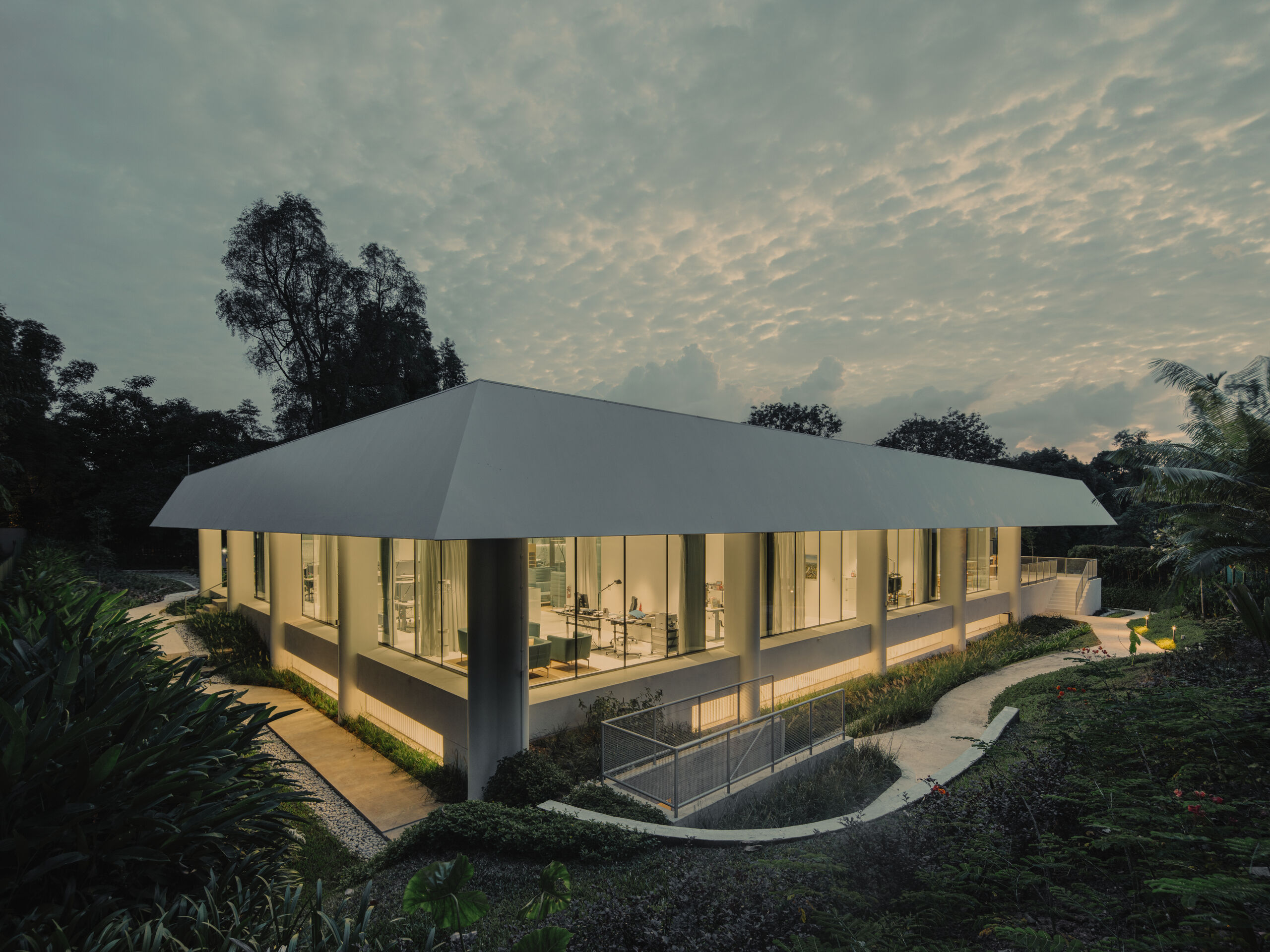

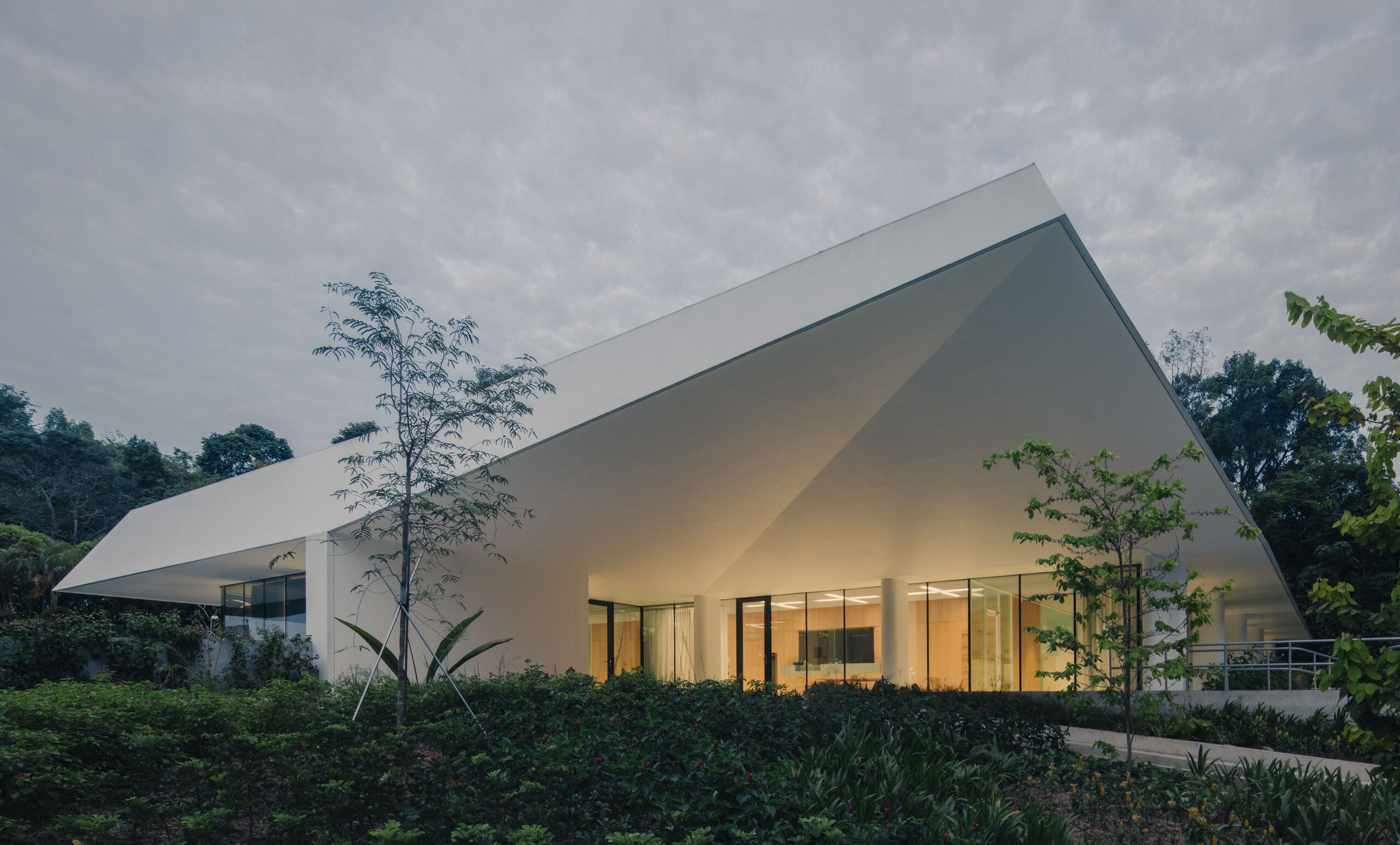

Exterior view of bungalow

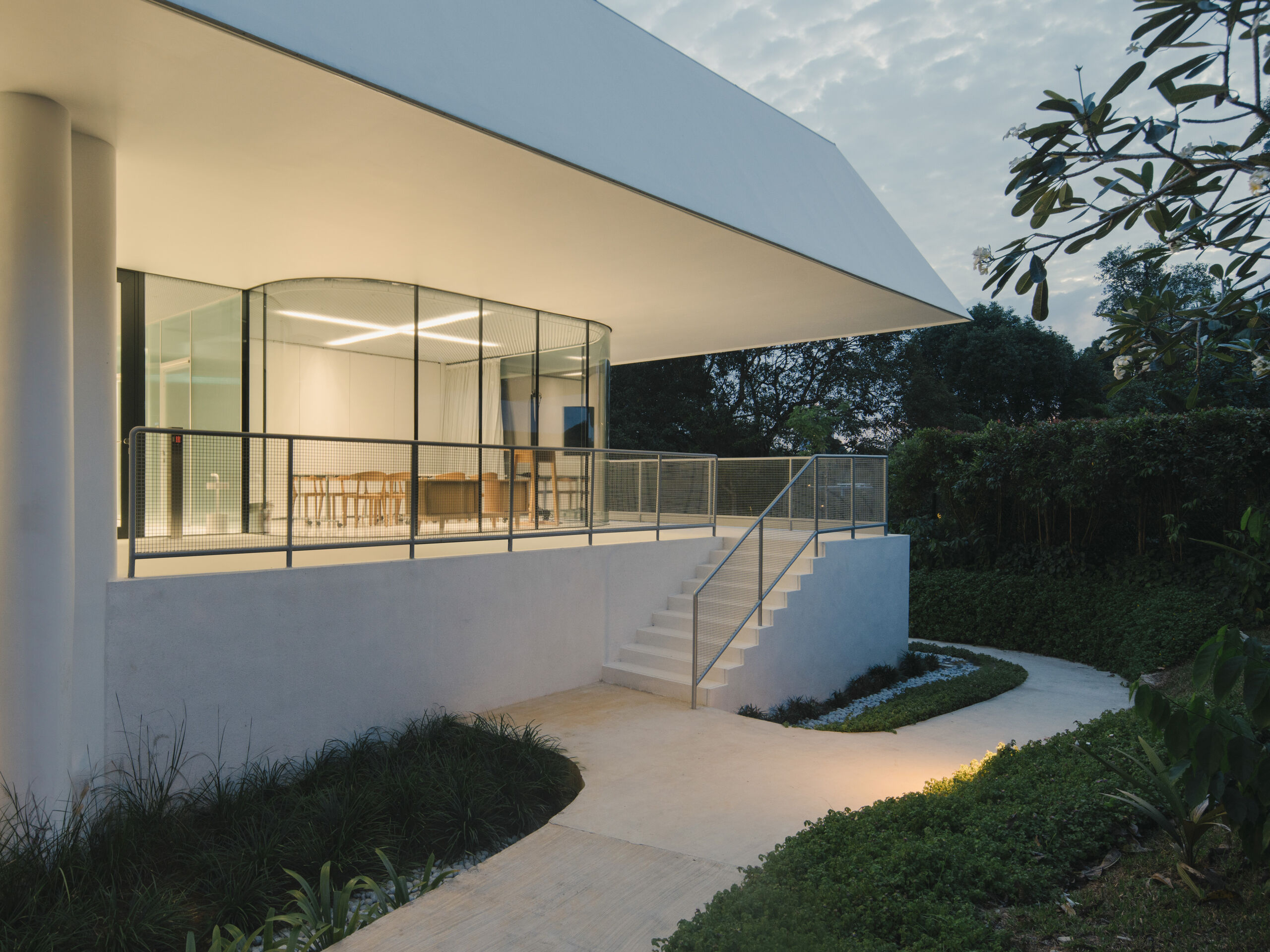

Access from the residence, conference room

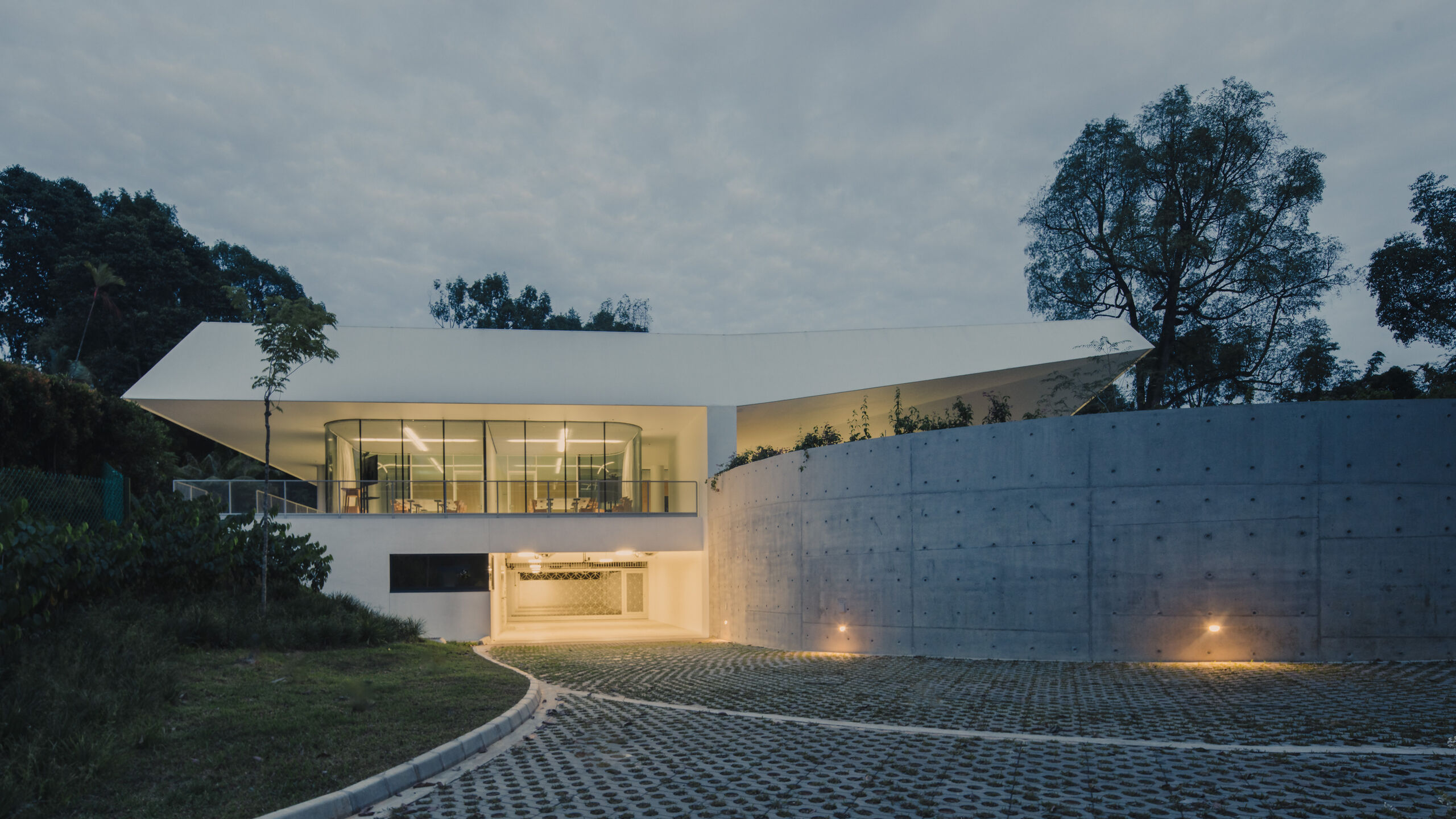

Conference room and parking garage entrance

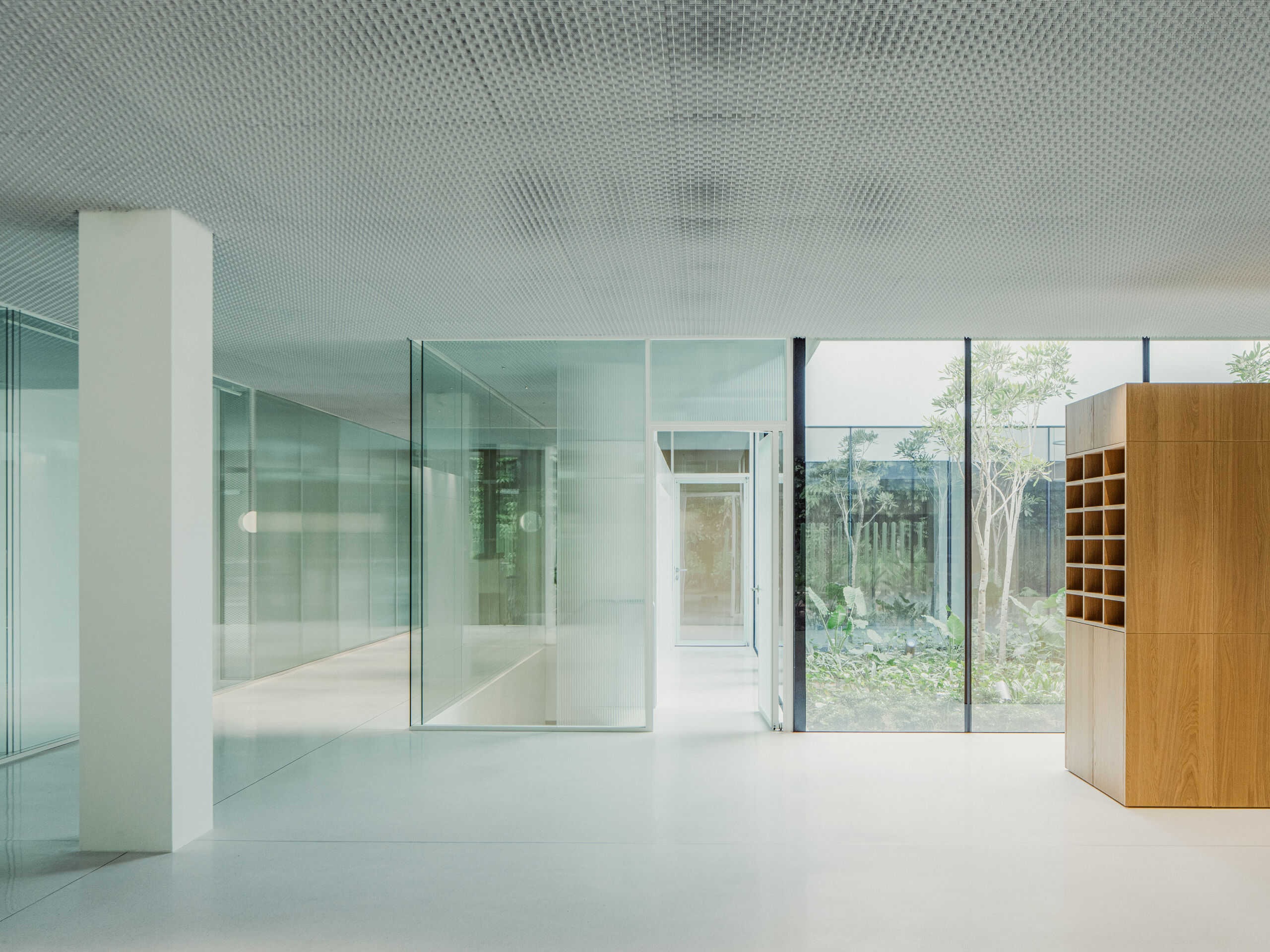

Open space with a view of the courtyard

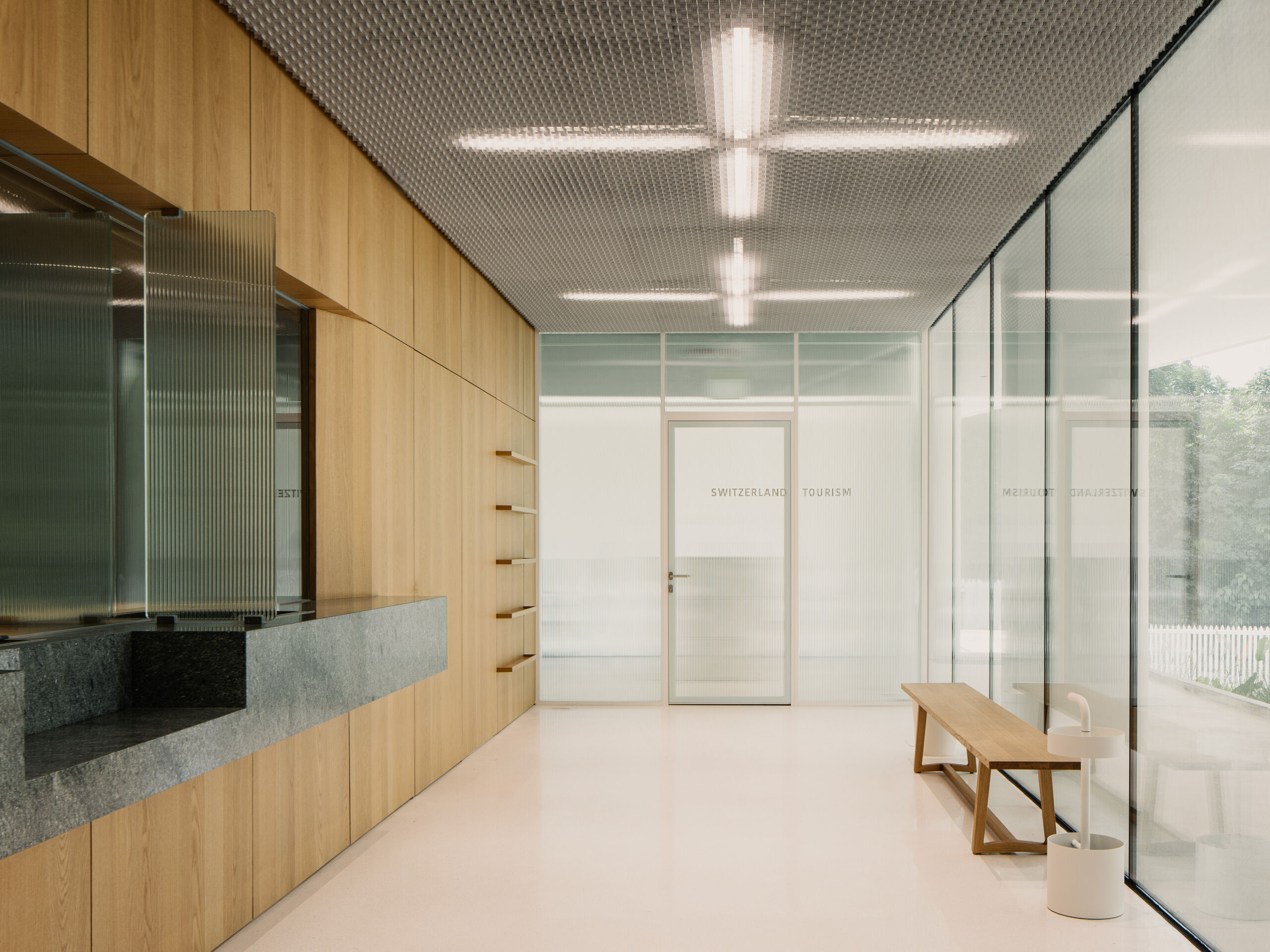

Switzerland Tourism waiting area

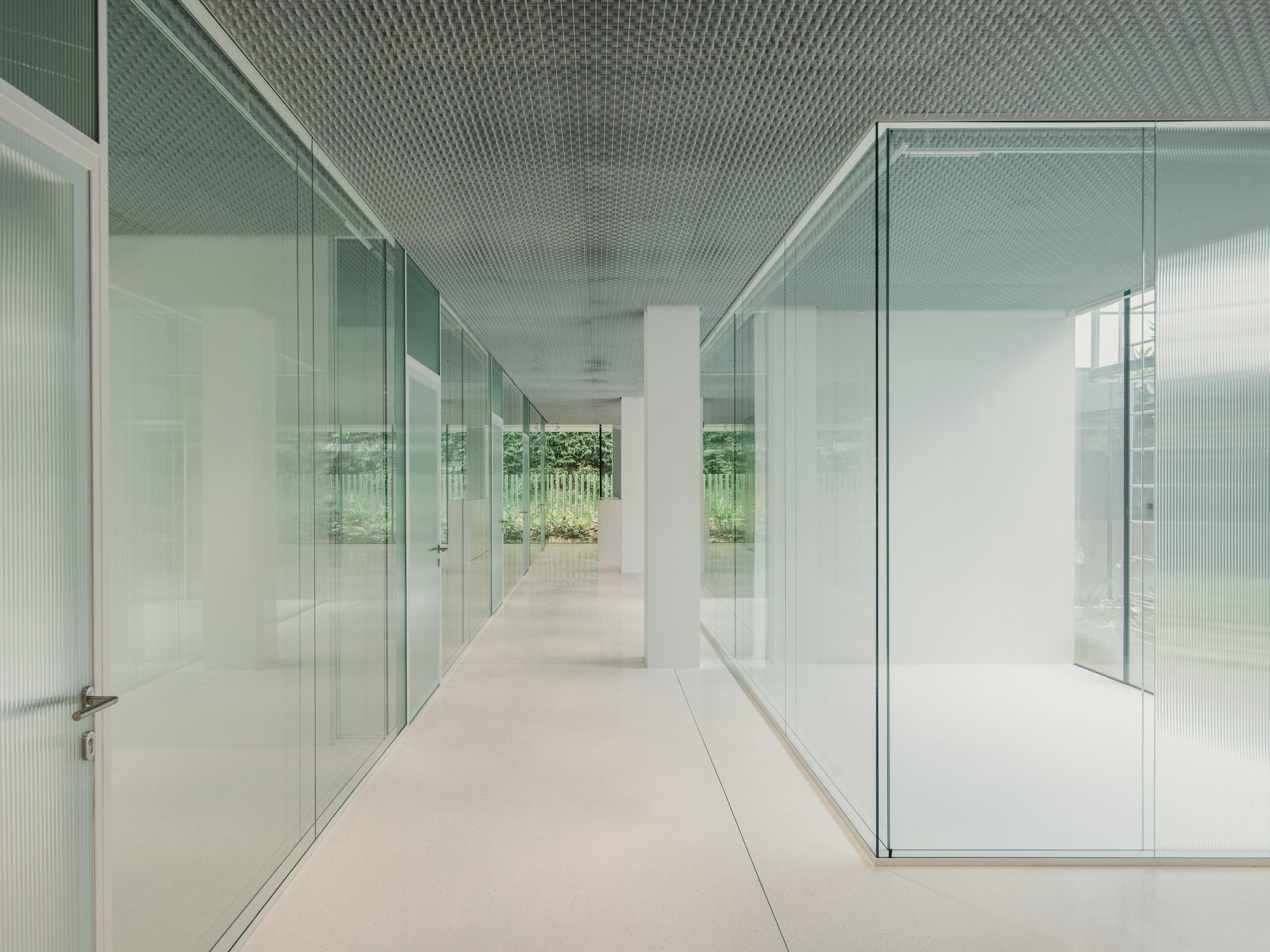

White office area in dialog with the green surroundings

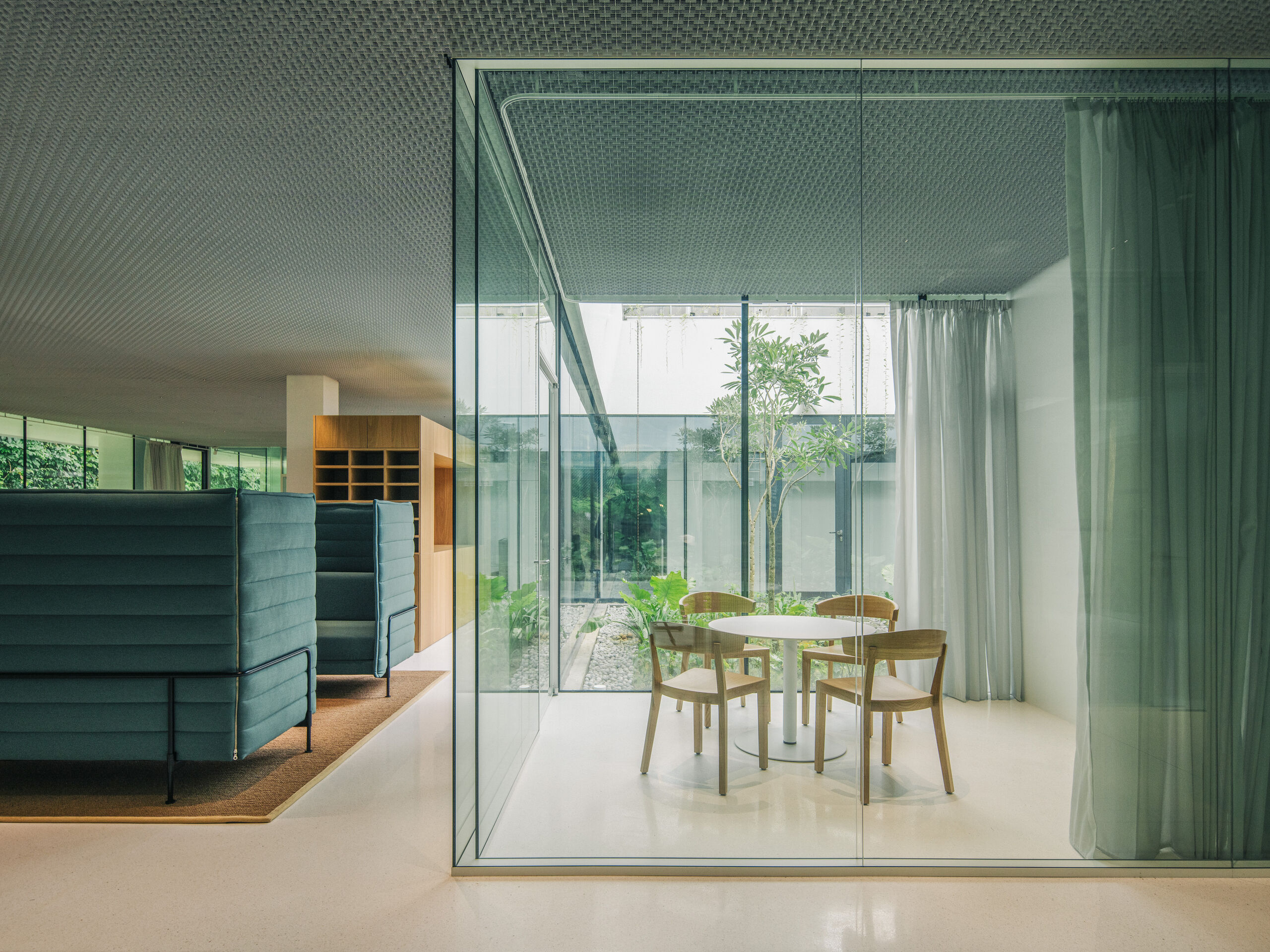

Open space with a view of the green inner courtyard

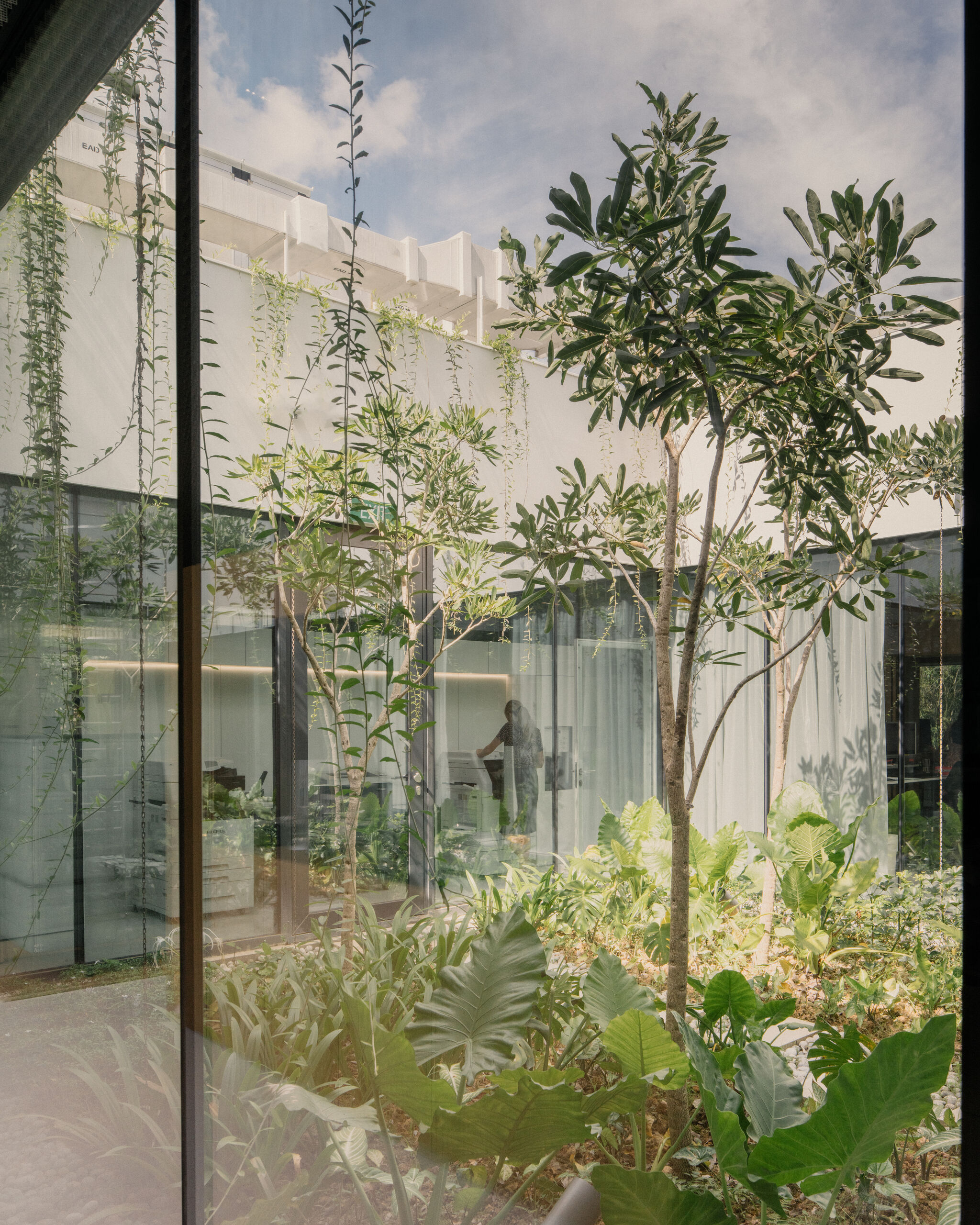

View into the courtyard

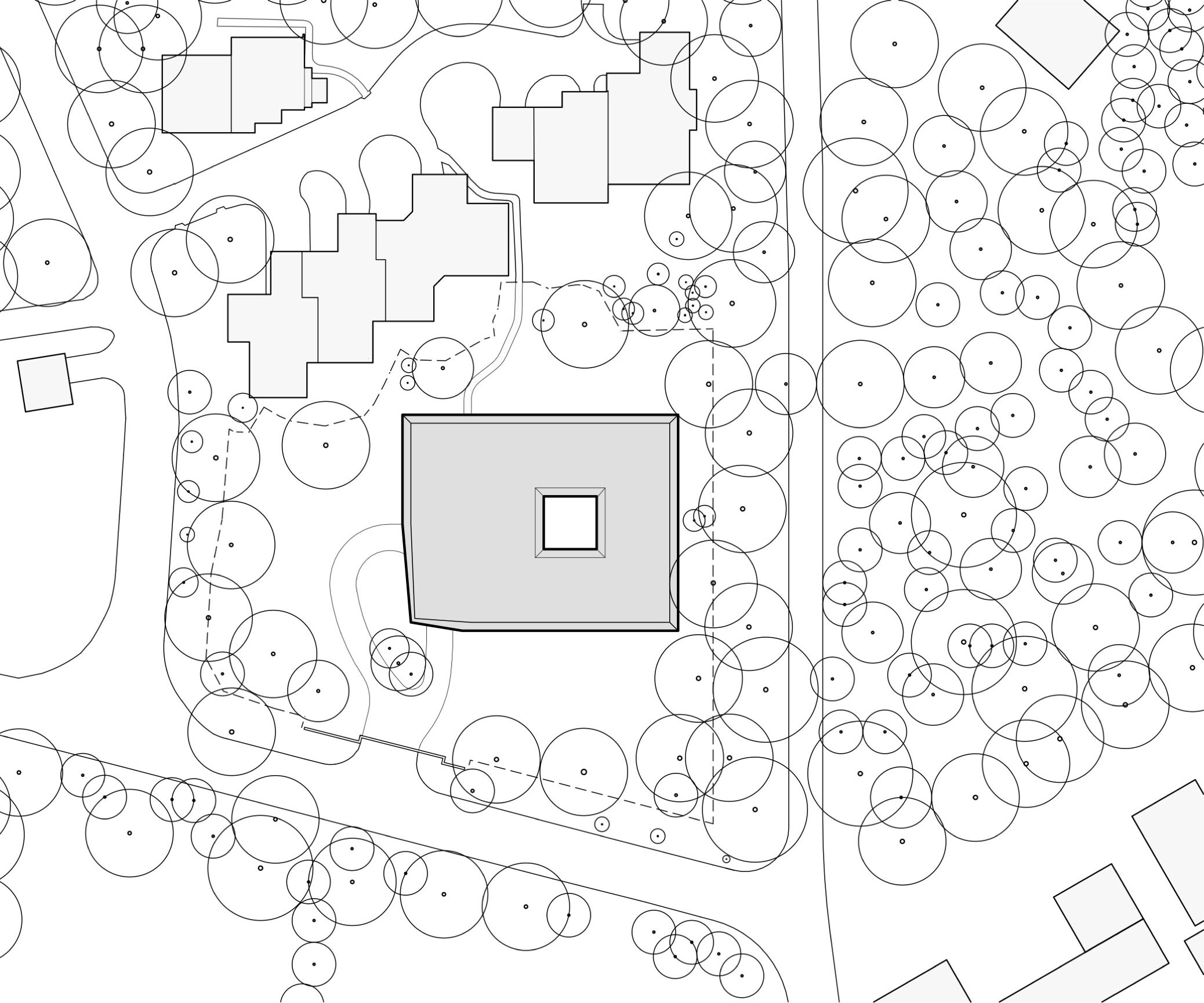

Site plan
Site plan
Ground floor
Ground floor
Section
Section
West elevation
West elevation
→ Info
↓ Next

Location: Singapur
Date: Competition: 2019, Start of construction: 2023, Completion: 2024
Floor area: 1’500 m2
Building volume: 6’200 m3
Awards: Best Architects 25

Berrel Kräutler Architekten AG
Maurice Berrel, Raphael Kräutler

Project: Johannes Maier, Ulrike Köpke, Beatriz Morales de Setién, Maëlis Nibourel, Jaime Rodriguez (Project manager), Sophie Wuest
Competition: Thomas Merz, Beatriz Morales de Setién, Jan Schöb, Sophie Wuest

Project participants
Client: Bundesamt für Bauten und Logistik BBL
Main contractor: TSF, Singapur
Landscape architecture: ORT AG für Landschaftsarchitektur
Construction engineer: Dr. Neven Kostic
Construction physicist: Kuster + Partner, Zürich
HVAC engineers: Ingenieurbüro Brügger, Frutigen
Lighting planner: Saturday Design, Singapur
Electrical planner: Mettler + Partner Consulting, Zürich
Visualisations: maaars
Photography: Khoo Guo Jie

0262Swiss Embassy Singapore
Complete Renovation and Expansion

In 2019, Berrel Kräutler Architekten won an open project competition for the complete renovation and extension of the Swiss Embassy in Singapore against 53 competitors. The existing chancery building, built in 1984, presents itself as a flat bungalow embedded in a scenic park landscape on the northern edge of Singapore. The architecture is perfectly adapted to the tropical vegetation and the needs of the prevailing climate. The previously protruding corner of the roof at the main entrance violated the integrity of the square pavilion. «Flamingo» is largely based on the existing structure and completes its overall shape. The roof now extends in a simple, rectangular shape over all the offices. The previously open corner at the main entrance has been completed and the outer façade has been moved one meter outwards to create space for a tripling of workstations and common areas.

The new load-bearing structure is limited to a few precise measures that are based on the existing building and also significantly shape the new spatial structure. A separate, glas conference room is now located in the entrance area. Next to this space, a covered plaza in front of the entrances remains free. This arrival area is designed as a slightly raised platform that offers a view of the surrounding greenery. The roof above is slightly raised towards the corner – an inviting gesture – which stands for the openness and transparency of the country. All the exterior walls of the office are made of glass – the boundaries between inside and outside are fluid. The workplaces have plenty of natural light and are strongly influenced by the lush greenery of the surroundings. The surfaces of the materials used reflect the color and intensify the feeling of being in a tropical garden. The public areas such as the cafeteria, the conference room with adjoining waiting area and the covered entrance area are connected in the new layout and can be opened up as required. This enables a large-scale presentation of the embassy at major events. The existing space will be modernized. The transition between closed and open spaces is fluid and can be adapted as required. The inner courtyard will be
retained and will help to illuminate the offices inside.

The security zones are clearly structured: Offices in the highest security zone are located at the rear of the building as a compact unit. The areas in front are divided into the mixed zone (cafeteria, conference rooms, waiting area for guests) and the customer zone (reception, offices of Switzerland Tourism).
